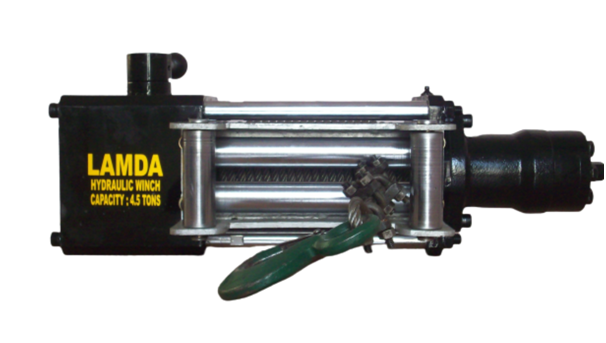

HYDRAULIC WINCH
Lamda’s hydraulic winch is designed especially for the heavy-duty work and helps you overcome issues like overheating, structural damage, and struggle due to the poor vehicle electrical system. It is free spool clutch operated by an easy action lever which disengages the gearbox to allow the wire rope to be pulled out without using winch power. Since it does not use battery power, it can provide a full and constant performance throughout the job
HYDRAULIC WINCH
Lamda’s hydraulic winch is designed for heavy-duty recovery and industrial applications. Unlike electric winches, it eliminates overheating and electrical system strain. The free spool clutch allows easy rope deployment without power, ensuring consistent performance in tough conditions.
SPECIFICATIONS
- Line Pull: 4500 Kgs to 9000 Kgs
- Line Speed: 25 feet/minute
- Cable Size: Dia 10mm x 60 feet
- Brake: Valve-type brake
- Gear Ratio: 4:1 single-stage planetary gearbox
- Gear Type Pump: 32 lpm – 160 bar
- Hydraulic Motor: 163 cc to 315 cc
APPLICABLE FOR
- Vehicle Recovery
- Off-Road Vehicles
- Aircraft Use
- Garbage Disposal Vehicles
- Industrial Use
